Nano 3D

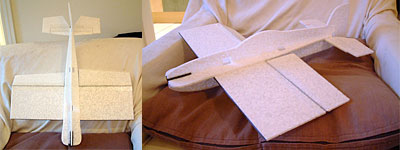

An 18″ span profile 3Der made from 5mm EPP sheet – could also easily be made from depron.

The Nano 3D is a small lightweight profile 3Der for indoor use. Kitted out with small gear, a 12g Outrunner Motor was used in the prototype with a 2s 300mAh Lipo. The empty EPP airframe weighed just 29g and could possibly be made lighter with care, AUW was 100g. With its large wing area at this weight, its a real floater.

Please download this pdf file to your hard drive to view & print.
(right click & save as target)

Nano 3D Plan
